HomeFittings HDPE butt fusion Reducing Cross
Previous product
fiiting 28
HDPE socket welding Coupling
Back to products
Next product
fitting 34
HDPE Butt Fusion 90 Degree Elbow

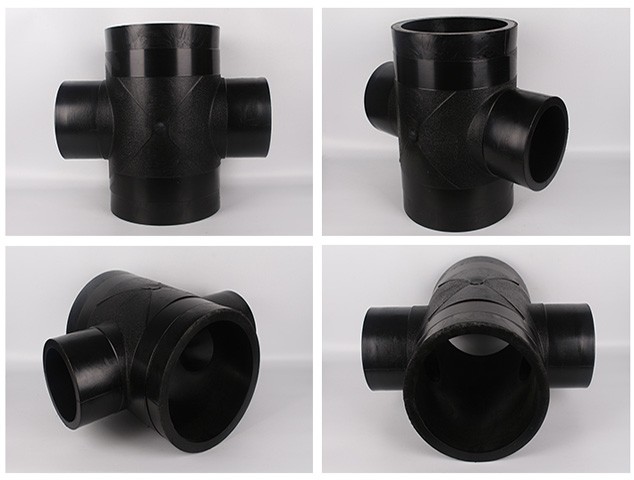

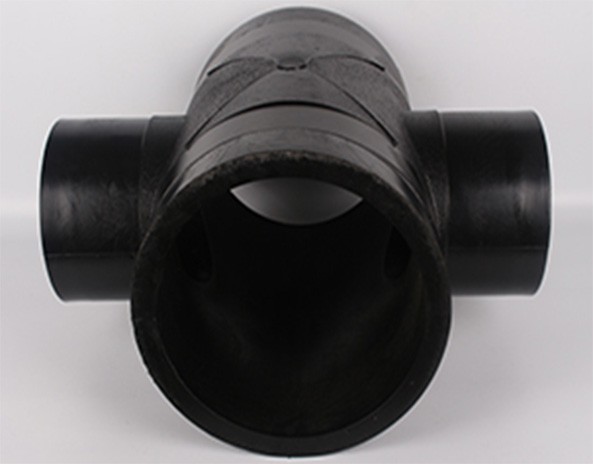

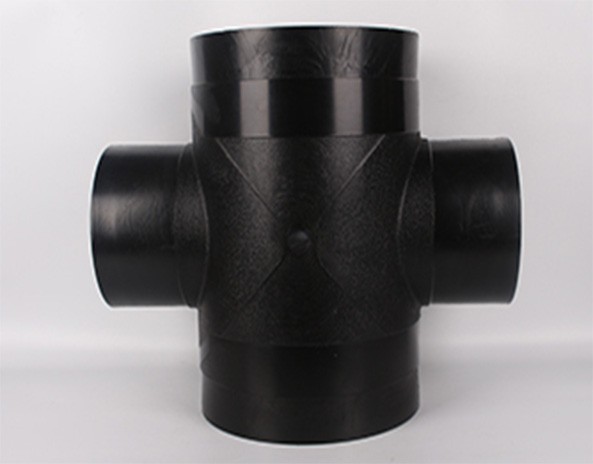

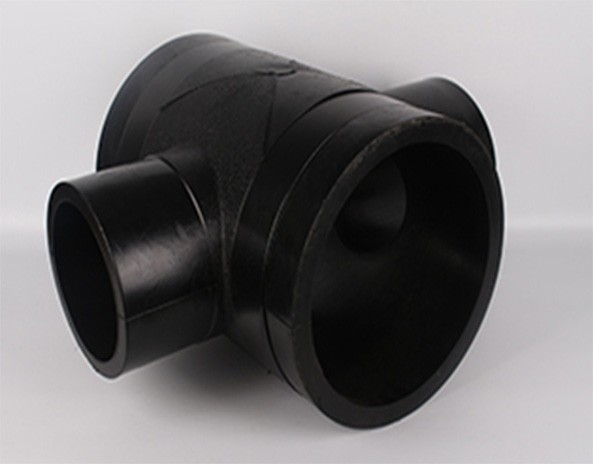

HDPE butt fusion Reducing Cross

Liquid Science Aqua can supply various sizes HDPE butt welding fittings from DN75mm to DN630mm. HDPE butt welding fittings include: flange, equal-diameter tee, reducer tee, ball valve, coupling, elbow 45 degrees, Elbow 90 degrees and so on. Can be customized according to requirements, our HDPE fittings are high quality new and unused PE80 or PE100 raw materials, mainly used in HDPE water, oil and gas piping systems.

HDPE butt welding fittings are fully compliant with ISO4427/AS/NZS 4130/BS EN 12201/SABS standards.

Size: DN63-500mm (Can Be Customized)

Pressure Rating: SDR11-PN16 Bar, SDR13.6-PN12.5 Bar, SDR17-PN10 Bar, SDR21-PN6 Bar, SDR26-PN6 Bar

Raw Materials: High Quality PE80 Or PE100 Raw Materials

Supply Capacity: 3 × 40ft Container Per Week.

Certificate: ISO 14001, ISO 9001, OHSAS 18001, CE BS EN 12001 Certification

Add to quote
This product is already in quote request list
Browse the list
SKU: FIT235 Category: Fittings
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Shipping & Delivery
  • Applications
Description

Butt welding and fabricated methods are the most common method of joining polyethylene pipes of various diameters for the moments. The ends of the polyethylene tubes are heated and connected together under pressure from specialized equipment to form a continuous “leak-proof” conduit. Butt fusion pipes is as strong as the pipe itself and has the same life expectancy.

Brief Detail:

Product name HDPE butt fusion Reducing Cross
Sizes available DN63-110mm, 200-400mm, 160-500mm, 200-500mm, 250-500mm,315-500mm, 400-500mm, 160-500mm
Pressure Rating SDR11,SDR13.6,SDR17,SDR21,SDR26
Material PE100
Color available Black or blue, or as per request
Standard ISO4427/ AS/ NZS 4130/ BS EN 12201/ SABS standard



Shipping & Delivery
Applications
1. Non-toxic, hygienic: PE pipe fittings are non-toxic and odorless. After strict health monitoring, they are green building materials and never scale, which can effectively improve water quality.
2. Corrosion resistance: PE is an inert material that is resistant to various chemical media.
3. PE pipe fittings are connected by butt fusion, and the interface strength is higher than the pipe itself.
4. High toughness: The elongation at break of PE pipe fittings is generally above 500%. For the uneven settlement of the foundation, it has strong adaptability and good seismic performance.
5. Excellent resistance to rapid crack propagation (RCP).
6. Excellent flexibility and scratch resistance.
7.good wear resistance, low wall friction coefficient, small flow resistance, strong conveying capacity.
8. Very convenient construction and installation.
9. Low system cost and reduced maintenance costs can greatly reduce project costs.
10. Long service life: The buried PE pipe fittings are used normally for more than 70 years.
11. PE accessories can be reused, fully in line with the advocacy of efficient environmental protection.
