FEATURES AND BENEFITS :
- Great Flexibility
- Light weight Convenient easy and fast installation
- Perfect Hydraulic Properties – minimum risk of blockage
- Water tight System – No Cange of leakage or cracking
- Hygienic and safe
- Excellent Corrosion and chemical Resistance
- Great strength
- Freedom to choose suitable option of inlet / outlets .
- Complate Solution
- Minimum Maintenance
- Longer life – overall economy
- Technical solution to existing cumbersome , conventional Drainage Product.

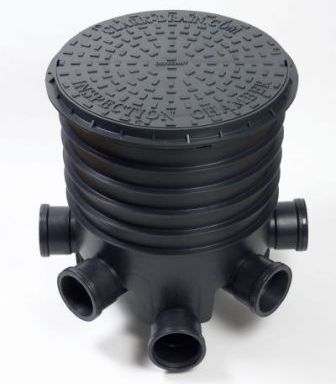

Components of Inspection chambers :
Following different sizes of Ultra Inspection Chamber and Manhole along with cover solution are available in the range.
- Ultra 250 with and without trap provision with 110 mm inlet(s) and outlet. (Size of the trap is 75 mm).
- Ultra 315 mm with 110 mm inlet(s) and outlet isavailable in seven different flow profiles/ ….configurations.
- Ultra 355 mm with 160 mm inlet(s)/ outlet in 5 different configurations.
- Ultra 450 mm multiple inlet(s) with two 110 mm inlets at 45° and two 160 mm inlets at 90° with main inlet/outlet in 160 mm. Ultra 450mm chamber in different flow configurations with 200mm main inlet(s)/ outlet and 110, 160, and 200 mm branch inlet(s).
- Ultra 600 mm with 250 mm inlet(s) and outlet in six different configurations. (Eccentric reducers in 250 x 200 and 250 x 160 mm are available to convert inlet(s)/outlet to required size.)
- Ultra 1000 mm manhole with 160,200, 250, 315 inlet (s) / outlet in different configurations.
